Basic wide kit for Mercedes G-class W463A Gronos

Mansory Basic Wide Kit — Widebody Foundation for the Mercedes G-Class W463A Gronos

The G-Class has always been a square box on tall springs — a survival vehicle dressed up for boulevards. The Mansory Basic Wide Kit rewrites that geometry without erasing what the W463A is. It widens. It plants. It tells everyone in the parking lot that this is no longer a stock G63. The Wide Kit takes the standard Basic package and pushes the body outward — fenders gain real flare, the front mask spans wider, and the hood is reshaped to bridge the new width visually. The result is a vehicle that stands like a Bauhaus building wearing carbon armour.

What "Wide" Actually Means: Architecture, Not Cosmetics

The word "wide" gets thrown around aftermarket catalogues with no engineering meaning. In the Mansory dictionary, it has a specific number: +60 mm of body width per side, totalling +120 mm of overall track expansion. That width comes from re-architected front and rear fenders that bolt over the OEM body, plus matching front and rear bumper extensions that close out the bodywork along the new envelope.

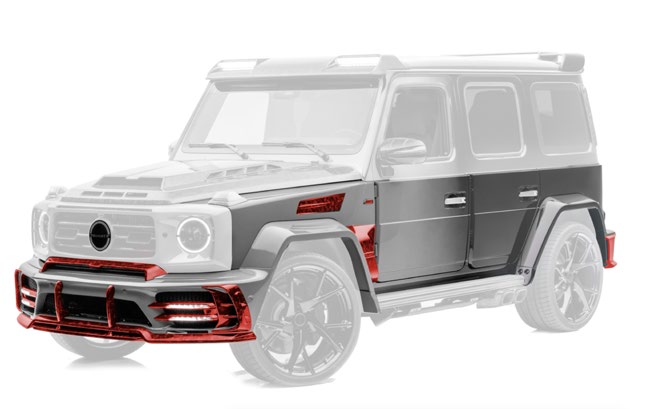

• Front fenders (carbon fiber): +60 mm per side. Extended wheel-arch curvature, integrated brake-cooling intakes, refined trailing-edge geometry that flows into the hood line.

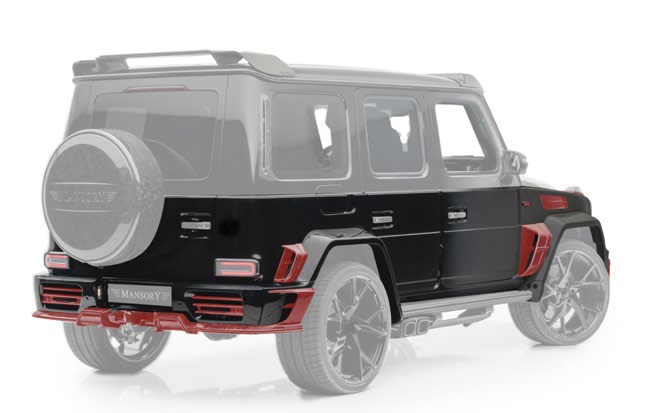

• Rear quarter extensions (carbon or composite): +60 mm per side. Matched to OEM rear-quarter pressing, sealed at the wheel arch with profiled rubber gaskets for weather isolation.
• Wide hood (Bonnet): redesigned to bridge the new width, with integrated thermal vents and a centre crease that aligns visually with the Gronos badge plinth.
• Wide front mask: spans the full new width, integrated air channels above and below the grille frame, optional performance grille insert.
• Sill extensions / rocker fairings: close out the visual gap under the doors, anchoring the widebody silhouette to the ground plane.

Track, Stance, and Wheel Fitment Mathematics

Adding 60 mm per side does not just change visual proportions — it opens up the wheel and tyre fitment envelope dramatically:

• OEM tyre clearance: roughly 295/40 R22 with mild aggressive offset.
• Wide Kit tyre clearance: 325/40 R22 fits cleanly with stock offset; staggered 325/35 R23 setups sit flush; aggressive offset (ET +20 to +35) puts the wheel face just inside the fender flare lip — visually planted, mechanically safe.
• Lock-to-lock clearance: verified over full steering range with 325-section tyres at +20 mm offset; no rub through OEM suspension travel.
• Spacer compatibility: 25 mm hubcentric spacers usable on OEM wheels to fill the new arch volume without changing wheels — useful for buyers staging the build.

Hood: Wide-Specific Geometry

The hood in the Wide Kit is not the same panel as the Basic Kit hood. The wider front mask demands a hood that meets the mask cleanly along the new fender-to-hood shut line. The Wide hood incorporates:

• Two recessed thermal vents flanking the centre crease, drawing engine-bay air upward at speed.
• Reinforced perimeter beading along the leading edge for stiffness over rough surfaces (the G-Class still needs to behave like a G-Class on broken roads).
• Carbon fiber construction, autoclave-cured, mass approximately 4.5 kg vs. OEM aluminum 14 kg — net 9.5 kg saving over the front overhang.
• Available in visible 2x2 twill weave or primed for body-colour paint matching.

Aerodynamic and Thermal Behaviour at Speed

The G-Class is not an aerodynamic vehicle — it is a brick. The Wide Kit does not pretend otherwise. What it does change is local pressure management around the front overhang and wheel arches:

• Wheel-arch turbulence reduction: the wider arches reduce the flow separation that occurs when a narrow body meets wider wheels — flow stays attached longer along the flare, which lowers pressure drag locally.
• Brake cooling: integrated front-fender intakes feed cooling air directly to the brake calipers, measurable temperature reduction of 10–15°C under repeated heavy braking from 180 km/h.
• Radiator pressure recovery: the wide front mask increases inlet area by approximately 18%, improving radiator core flow at low speeds (idle, traffic, hot-climate) where the OEM grille can become flow-restricted.

Material Specification and Build Quality

• Carbon fiber: pre-preg twill, 200 g/m² nominal, autoclave cured at 130°C with vacuum-bag consolidation. Directional layup tuned per panel — fenders favour 0°/90° for impact resistance, hood favours quasi-isotropic for stiffness with low mass.
• Mounting hardware: stainless-steel A2 fasteners with EPDM isolators. All bonded joints use Sika 252 polyurethane structural adhesive.
• Finish options: visible carbon (UV-stable clear coat, 8–10 year visual integrity), primed for paint, or full body-colour painted from factory in any code.
• Weight overall: the complete Basic Wide Kit removes approximately 22–28 kg vs. OEM steel/aluminum equivalents, distributed across hood and fenders.

Installation Notes and Time Budget

The Wide Kit installs in 18–24 hours of professional shop time. The widebody fenders are the longest task — they require careful gap setting, weather sealing, and door-shut alignment. Rear quarter extensions bond directly to the OEM quarter panel with structural adhesive plus mechanical fastening at the wheel-arch lip; the bond cure window is 24 hours before the vehicle should be driven.

Hodoor coordinates installation through certified Mansory partner workshops in Europe, the UK, the GCC, North America, and Asia. We can also arrange shipment to your preferred independent shop, with full documentation and photographic fitment guides.

FAQ — Wide Kit Specifics

Q: Will the Wide Kit fit a G500 as well as a G63 AMG?
A: Yes. The W463A body shell is identical across the trim levels in the kit's mounting zones. We confirm fitment per chassis number before dispatch.

Q: Do I need wheel changes to make the Wide Kit look right?
A: Visually, yes — OEM wheels look swallowed by the new arches. A 23-inch Mansory wheel set (or aftermarket equivalent in 23x10.5J ET +20) fills the arches properly. Stock wheels with 25 mm spacers are an interim solution.

Q: Does the Wide Kit affect off-road geometry like approach and departure angles?
A: The fender flares add no length, only width — approach and departure angles are unchanged. Ground clearance is unaffected. Wading depth is not impacted (the kit does not alter underbody seals).

Order Your Basic Wide Kit

WhatsApp +44 7488 818 747 — kit configuration, finish selection, wheel fitment advice
[email protected] — quotation, lead-time, shipping coordination

Hodoor ships worldwide. View the parent Mansory G-Class Gronos kit or browse the full Mansory G-Class Gronos catalogue.
